What Are Capsule Slip Rings?
Slip rings are compact devices using electromagnetic induction for transmission of signals and power from a stationary to a rotating component. Capsule Slip ring is a variant of the slip ring which resembles a hat slip ring. It is packed with a cap flange for accommodating with the other equipment which is mounted on the flanges. This is why capsule slip rings usually have an outer stationary and inner rotator component.
Capsule slip ring comes in a variety of materials and combinations. Use of gold enhances quality and shelf life. These slip rings rotate at 2000 rpm and can be used in combination with multiple amperage and voltages. They are resilient and multipurpose and can be used for many different applications.
Capsule slip ring can be utilized in industries, military and civil operations as they are tolerant to most work conditions.

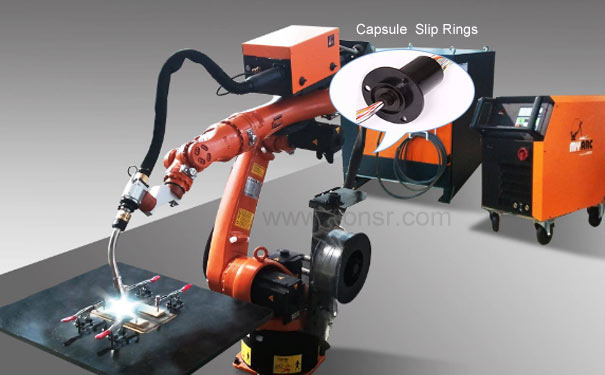

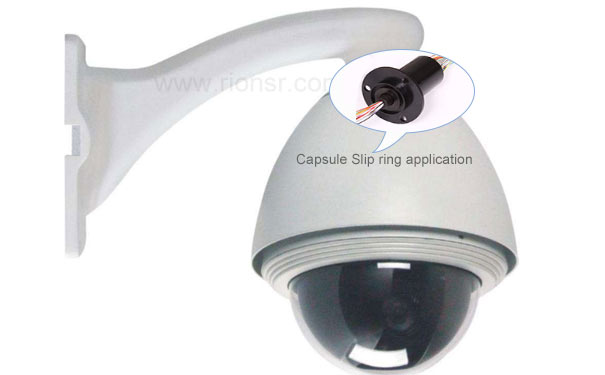

The stator and rotor are usually colour coded for making connections simpler. They are usually very compact and have low torque and negligible noise. They are connected in series combination. The compact design of the capsule slip ring makes it ideal for closed-circuit surveillance spherical head, robotics, industrial setups, electrical test equipment, exhibition, point of sale display and medical equipment. But it can be further customized as per customer needs.
Features:
It is a series combination conductive ring with an outer diameter of 22-35.5mm.
The number of channels are up to 125 in number.
The rotation speed can be up to 2000RPM. But many variants are available in 10000RPM too.
The housing is made up of either metal or plastic.
It may also consist of a rotary shaft.
Capsule slip ring can be used in various transmission systems include video, control system, sensor, power, Ethernet, etc.
It is extremely suitable for military equipments due to high quality, low contact resistance, gold on gold contact, and higher shelf life.
Capsule Slip ring can be used for:
1. Electrical Test Equipment
2. Manufacturing and process control equipment
3. Robotics
4. Medical equipment
5. Rotating tables
6. Exhibition / product on display equipment
How to install?
A capsule slip ring comes with a flange on a sleeve bracket arrangement.
The rotating part must be connected with a flexible channel in a concentric fashion like a spiral or a rubber tube. Rotor lead can also be used.
Then you can use screws and washers to mount the capsule slip ring. Avoid extra tightening of these washers and flanges.
Never let the slip ring take the weight of the attached equipment. Rotating equipment must be locked at all places and no weight should be exerted even on the fixed part.
Avoid moisture and dust accumulation on the capsule slip ring. You should always use a protective shield when using this slip ring for outdoor equipment.
The wires must be protected at all costs. Especially during rotation.
While stripping off the skin head watch out for the wire you will not want to damage it.
Capsule slip rings are a reliable variant of slip rings and can be used in so many industries. Follow us at http://www.rionsr.com/to know more.
